Mean Well TDR-960-24 24V 40A 960W 3-Phase DIN Rail Power Supply

Product Description

Mean Well TDR-960-24 24V 40A 960W Three-Phase DIN Rail Power Supply is a high-power industrial AC/DC power supply designed for factory automation, machinery, control cabinets, industrial equipment and other professional 24V DC systems.

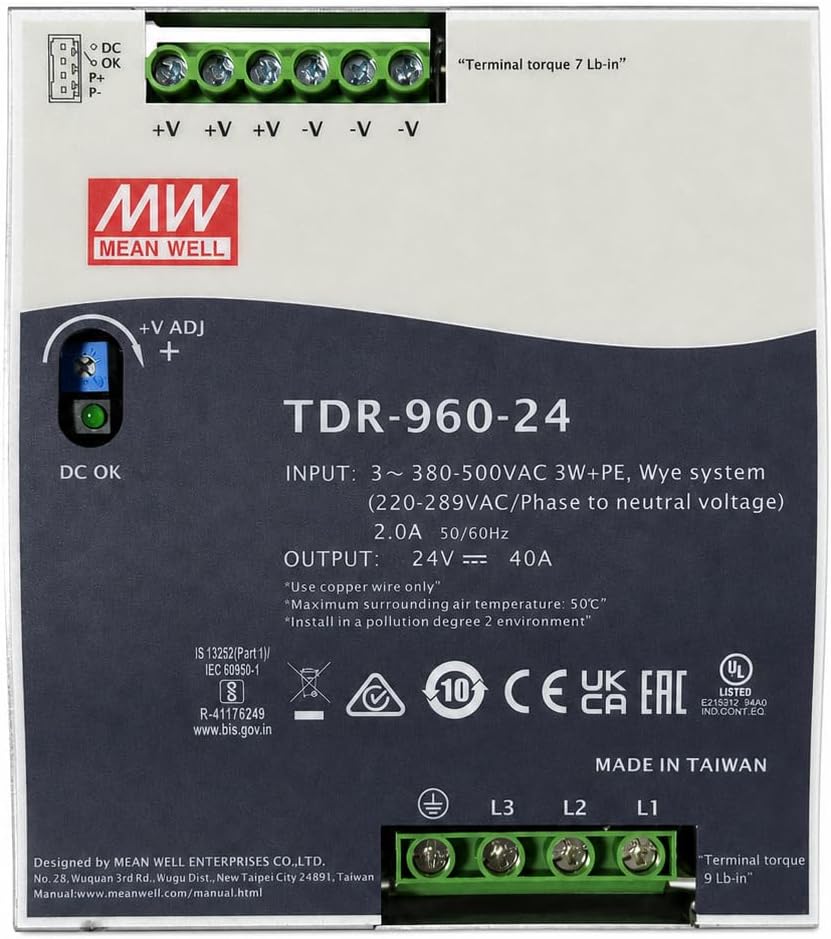

The TDR-960-24 provides a regulated 24V DC output at up to 40A, delivering 960W rated power. Output voltage can be adjusted from approximately 24V to 28V, allowing flexibility for industrial systems requiring a slightly elevated 24V DC bus. Mean Well

It supports a wide three-phase 340–550VAC input range and can also operate from dual-phase input. The unit also accepts approximately 480–780VDC input. Mean Well specifies active PFC and about 94% efficiency for the 24V model. Mean Well

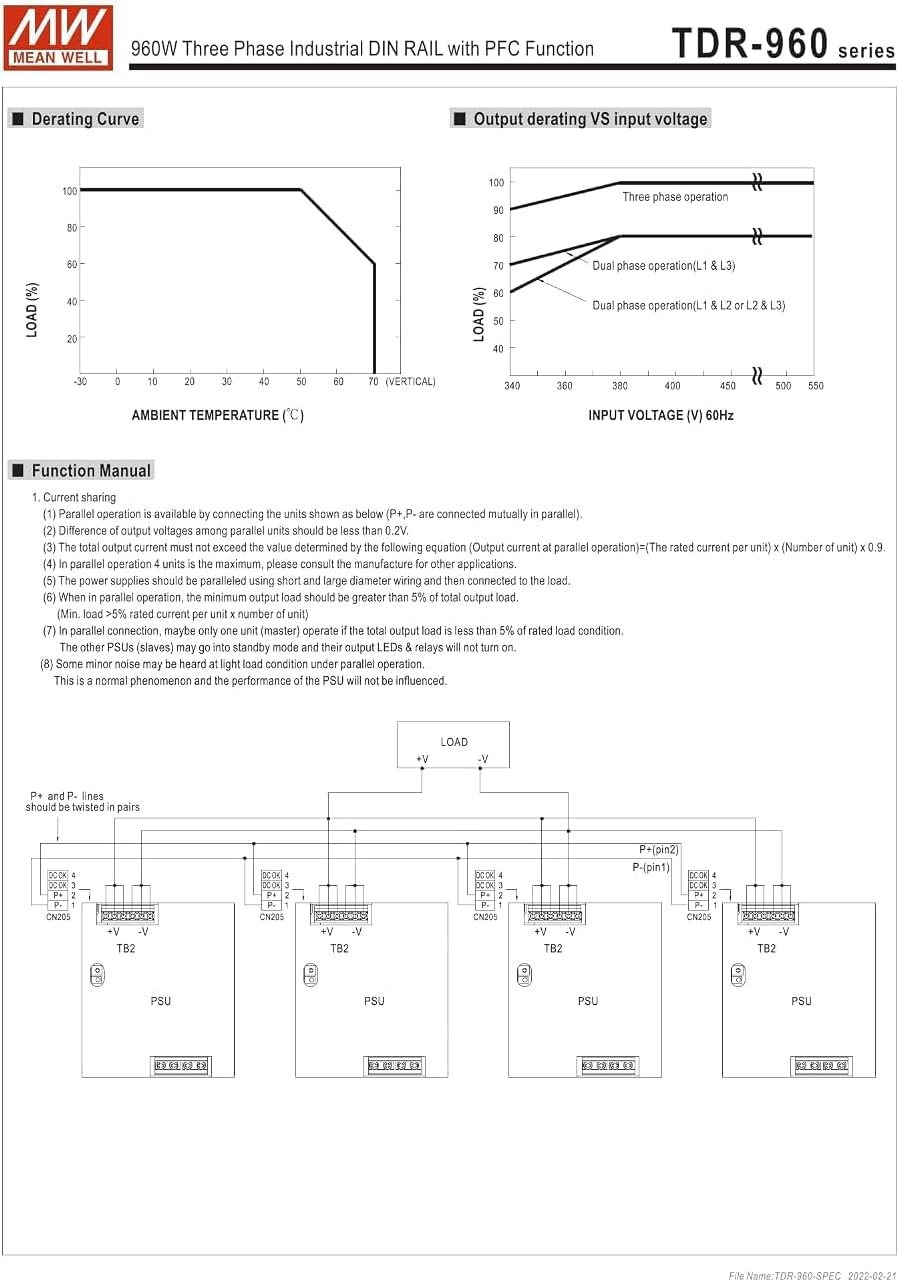

The TDR-960-24 includes built-in short-circuit, overload, over-voltage and over-temperature protection, plus a DC OK relay contact for system monitoring. It also supports current sharing / parallel operation up to 3840W in a 3+1 configuration. Mean Well

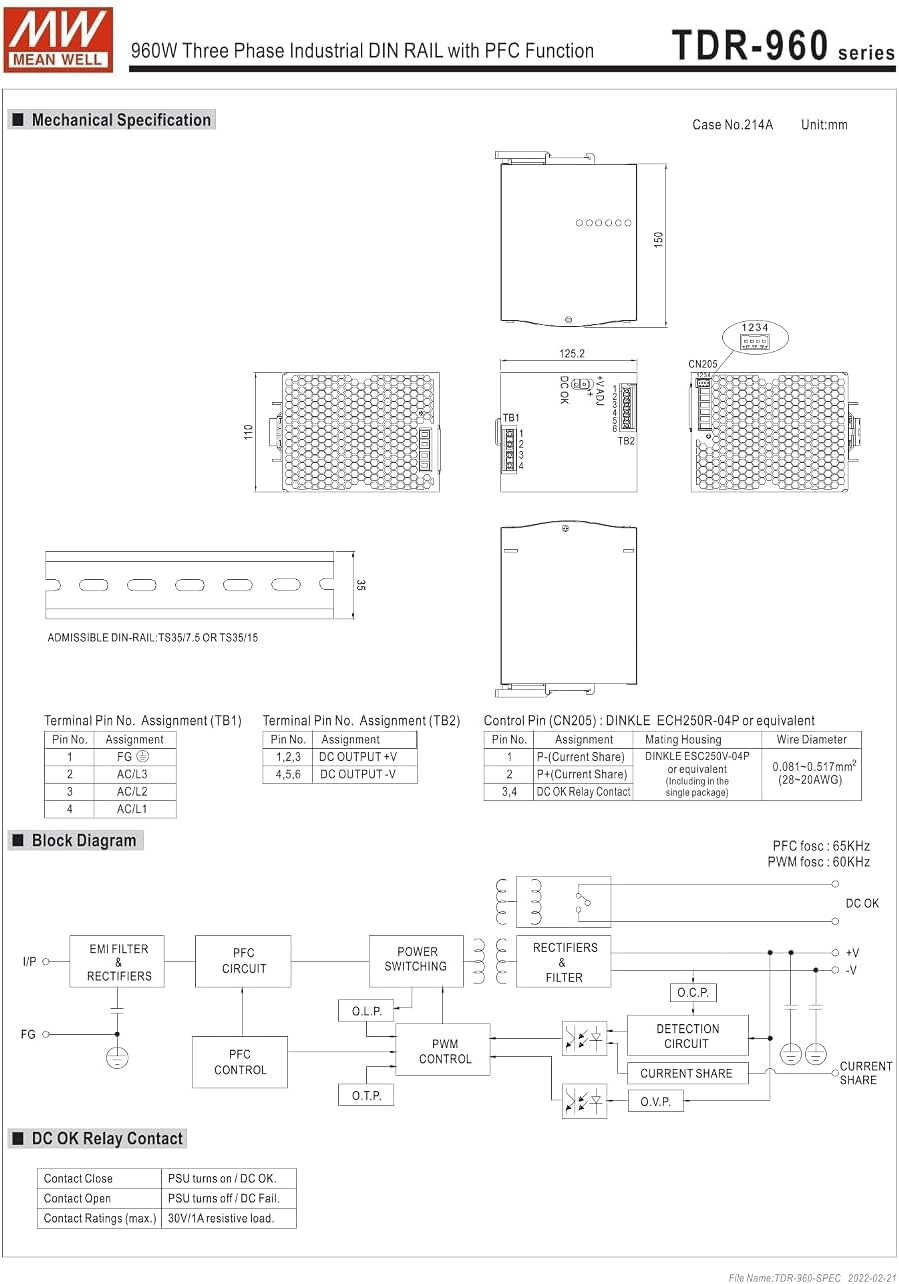

The power supply mounts on standard TS-35/7.5 or TS-35/15 DIN rail, uses fanless free-air convection cooling, and carries UL508 industrial control equipment approval.
